Session automation implementation plan

Implement the specification for issue #6612 as a stack of cohesive changes. The completed delivery must demonstrate a fresh browser session progressing from a prompted saved workflow through local IFC loading, tagging, selected native checks, retained reports and a downloadable PDF.

Implementation is complete in this checkout. The design below records the intended boundaries; the delivery evidence at the end identifies the actual checks and browser runs. Each new production module is under 400 lines.

Architecture and dependency direction

Keep graph execution in @ifc-lite/flow, portable contracts and node wrappers in @ifc-lite/flow-nodes, and native orchestration in apps/viewer. Reuse existing loaders, evaluators, fingerprint builders, diff engines and PDF composition. Do not change the underlying Rust/domain algorithms.

The node package must not import viewer stores, React hooks, File, Blob, DOM APIs or viewer report-block types. Nodes call optional host services with portable configurations and opaque run tokens. The viewer owns actual files, native reports, models, documents and PDF blobs. Register the new definitions in the standard registry so CLI/MCP can describe them and report missing host services before side effects. Unsupported services are unavailable, not noop.

Extract callable services with explicit inputs. Existing native UI hooks and Flow use the same services; UI adapters retain colors, selection, telemetry, cancellation epochs and cache reconciliation. Never temporarily change an active panel's options to impersonate a Flow job.

flowchart LR F[File slots or loaded models] --> L[Load models] L --> T[Assign filename tags] T --> V[Validation jobs] T --> C[Comparison recipes] H[Historical reports] --> D[Build document] V --> D C --> D D --> P[Generate PDF artifact] P --> A[Download PDF action]

Edges are completion barriers. The current scheduler executes a topological order sequentially; this work does not add parallel engine execution.

Concrete contracts

Concern	Implementation decision
File slots	Add InputKind: 'files' and optional FlowInput.fileSlots: ordered { id, label, accept, multiple, required } entries, legal only on files inputs. IDs are unique within a field. Resource addresses include node ID, parameter and slot ID.
Runtime input	Player overrides the exposed parameter with a JSON-compatible slot-to-token map. File objects stay outside persistable values; slot metadata stays in the graph.
Selectors	Discriminated union for qualified slot, exact original filename and normalized tag name. A caller enforces set versus exactly-one cardinality.
Resource definitions	Embedded parsed configuration or external slot reference. Job params store stable IDs, order, enable flags, targets and tag mappings.
Results	Aggregate run tokens reference immutable native snapshots keyed by job ID and result ID. Local history ID, result ID and job ID are distinct. Scalar/table summaries remain ordinary Flow outputs.
Provenance	Optional validated automation metadata records origin, workflow/run/job IDs, resource identity, effective options, model provenance, timestamp and execution diagnostics beside native snapshots. Imported evidence preserves its original date.
Template mapping	Flow params map existing native block IDs to explicit job/result IDs. Generated native documents contain resolved ordinary blocks, with no new placeholder block type.
Artifacts	Viewer tokens reference PDF blobs until another run, document-affecting edit, graph close or session reset invalidates them. Download can be retried without rerun.

Use scalar/item ports for report/document/artifact tokens, any/item for the bounded model-set payload, and table/item for summaries. Check token ownership and payload type at every host boundary. Do not serialize files, native report bodies or large snapshots through graph edges and logs.

Use existing capability grammar: model.create, model.read, storage.write:modelTags, storage.write:validationReports, storage.write:savedComparisons, storage.write:documents, and export.create:pdf. The parser already supports identifier actions/targets; no new scope is needed. Document their semantics and test parsing, exact/wildcard grants and denials. Declaration and enforcement use the same strings.

Host requirements are sessionModels, modelTags, validationChecks, comparisonChecks, comparisonReports, reportDocuments and pdfArtifacts. Derive availability from services actually supplied to the run; do not advertise optional services unconditionally in global BROWSER_FEATURES.

Information rule sets evaluate a targeted federation as one job. Native IDS currently evaluates one model. An IDS job targeting N models therefore yields N independently completed result records, in resolved slot order. Evaluate cardinality separately per model; do not merge models into a fictitious IFC or average/sum pass rates. Documents show separate model reports with a scoped job summary.

Rule engines can return evaluator errors within a report without throwing. Treat those as execution failures: retain completed error evidence with its diagnostics and block automatic PDF output. Failed requirements and ordinary not-applicable results are quality verdicts. Native bounded/truncated outputs carry diagnostics and cannot appear as unqualified complete passes.

Review slices and merge order

Each numbered slice targets #6612. Split an oversized slice into adjacent stack layers above roughly 1,500 changed lines. Ship its tests, guide changes and changeset alongside production code. Only the final layer closes the issue. Export new symbols only with actual production consumers.

1 Shared native validation execution

Extract from hooks/useIDS.ts, hooks/validation/useInformationValidation.ts, lib/model-tags/evaluator-models.ts and lib/validation/reports/history.ts into proposed lib/validation/run-ids-check.ts and run-information-check.ts services.

Services receive explicit documents/rule sets, target models, effective stores/mutation views, locale, signal and progress callback; return native reports with immutable provenance snapshots. Retain worker eligibility, source access and property/entity-overlay projection. AbortError terminates IDS work rather than starting main-thread fallback. Non-abortable work checks cancellation before and after execution and retains its resources until it settles.

Native hooks call the services while keeping UI epochs, throttling, analysis stamps, live-result publication and color behavior. Manual Save report behavior is unchanged. No new parser/accessor/evaluator implementation.

Exit evidence: existing supersession, clear and pending-edit worker tests remain green; behavioral tests exercise edited properties, deleted/created overlay entities and cancellation preventing fallback or late publication.

2 Shared comparison execution and recipe IO

Extract from hooks/useCompare.ts, hooks/compare/comparePairCache.ts, lib/compare/versionedBuild.ts, effectiveCompareStore.ts, geometryCapability.ts and exportReport.ts into proposed lib/compare/run-comparison.ts. Add comparison-recipe.ts, comparison-recipe-io.ts and a small native Compare setup control.

Separate fingerprint preparation from diff construction. Pass explicit options and accepted identities: native UI passes its pair-scoped identities, Flow passes none. Retain effective stores, authored-key duplicate handling, geometry content versions, alignment trust and split/merge/successor suggestions. Keep the UI's synchronous latest-option read immediately before publication and its cached re-diffs; protect the behavior covered by useCompare.midRunOptions.test.tsx and supersession tests.

Implement version-1 .comparison.json boundary validation/serialization and Save/Open comparison setup controls. Capture scope, exclusions, content matching and authored keys; preserve portable A/B selectors. Import configures but never runs. Distinguish recipe JSON from saved evidence and plain CompareReport JSON. Put portable selector/config contracts in a small flow-nodes module once they gain their first consumer; viewer report schemas stay in the viewer.

Exit evidence: native comparison regressions remain green; recipe round-trip preserves explicit options and A/B direction. Shared execution agrees with native results for effective edits and data/geometry scopes. Strict geometry requirements are a Flow preflight policy; preserve native UI degradation behavior.

3 Run ownership and local file loading

Change packages/flow/src/document.ts, flow-nodes host/registry modules, viewer lib/flow/runner.ts, persistence.ts, player-fields.ts, player-values.ts, components/viewer/flow/useFlowRunner.ts, FlowPlayerField.tsx, and flowSlice.ts/teardown. Add proposed viewer run-session.ts, run-resources.ts, preflight.ts, local-models.ts, FlowFilesField.tsx and the session.loadModels node wrapper.

Implement Flow v2, strict files metadata validation and v1 migration. Every boundary migrates before validating: imports, CLI/MCP, extension contributions, examples and saved browser entries. loadSavedFlows currently validates entries directly; simply increasing FLOW_VERSION would discard v1 graphs. Preserve damaged storage recovery and surface Flow save/import persistence failures. Keep the existing text file field. Retain v1 test fixtures as migration cases.

Give each run an immutable graph/settings snapshot, controller, owner ID, generation, model revision pins and resource map. Expose run, cancel and readiness; keep ownership outside components that may unmount. Claim one viewer execution lease before side effects and pass the signal through the scheduler and every host service. Graph replacement/close and teardown invalidate the generation; graph ID alone does not distinguish an edit to the same graph. Preserve backend write capture, mutation provenance and tracking semantics.

Gate conflicting load, edit, tag and check entry points in execution adapters as well as controls. Workflow calls carry the owner token; keyboard/SDK calls cannot bypass it. External changes such as remote collaboration invalidate affected revision pins and supersede the run before publication; do not silently disconnect collaboration. Identify all relevant entry points in this slice.

Static preflight parses bounded resource text, validates schemas, versions, IDs and required file slots before loading. Queue File objects through existing enqueueSourceLoad → addModel → useIfcLoader.loadFile; avoid base64 copies. Use original filenames and existing source-content hashing. Reuse only explicit slot bindings with matching full content identity. Wait for complete data and required geometry; an errored/cancelled model present in the Map is not success.

Trace and reuse canonical loader cancellation ownership before adding signal parameters. Queued tasks recheck run ownership before starting. Never call a global canceller that belongs to another load. Cancel stops later scheduling, but holds the lease and resources until current non-abortable work drains; another Run remains disabled. Release temporary resources/lease in finally. Keep completed PDF blobs separately until their artifact lifetime ends; revoke their object URLs then.

Readiness follows graph requirements. Load-first and historical-evidence graphs can start without an active model; default-model reads still require one. Existing tracked mutation graphs retain their content pin rules. An unbound empty-session graph cannot invent a tracked-write pin from a filename.

Exit evidence: empty-session load, reuse with matching identity, queue recovery, cancel while queued/loading, same-ID graph edit, resource forgery, v1 saved-flow migration and CLI/MCP unavailable-host refusal before side effects.

4 Filename tags and portable rule references

Use modelTagsSlice.ts, lib/model-tags/persistence.ts and native rule/filter contracts. Add small matcher/selector modules under flow-nodes and proposed viewer lib/flow/model-targets.ts, tag-assignments.ts, rule-tag-bindings.ts, plus session.assignModelTags.

Use bounded glob matching for */?, native tag-name normalization and the original source filename. Union all matching rules, reuse/create tag definitions and call native assignment actions. Preview expected assignments; preserve manual tags and warn on no match or failed definition persistence.

Collect/remap references through the typed rule/filter AST, including nested groups and target/applicability/requirement fields. Reuse existing visitors or add one consumed by import and execution. Never replace arbitrary fields named tagIds. Unknown IDs require user name mapping. Remap a cloned definition; preserve original JSON, model fingerprints and exact IFC names. Resolve native targets inside the job model set; fail zero targets before evaluator execution.

Exit evidence: overlap/case/glob invariants, duplicate filenames, preserved manual tags, idempotent rerun, fresh-browser tag IDs, nested mappings and unchanged source definitions. Exercise one model and N models.

5 Checks and retained historical evidence

Depends on slices 1–4. Add validation/comparison/import aggregate node wrappers and proposed viewer check-jobs.ts, validation-host.ts, comparison-host.ts, report-retention.ts and bounded resource parsers.

Preflight validates enabled jobs, sources and options; dynamic targets/geometry are rechecked after tagging. Invoke native services sequentially and retain each completed result before the next job. No global last-result lookup, automatic recoloring or overlay activation. Each IDS target produces its own result. Separate quality verdicts, evaluator errors and execution exceptions.

Extend saved report envelopes with optional validated automation provenance; old records remain readable. Keep report/document validators and serialization consistent. Retention outcomes distinguish saved, memory-only and duplicate. Same-result save within a run is idempotent; new runs are new evidence even if counts match. Storage refusal preserves in-memory reports with retry/download.

Historical imports accept SavedComparison v1, deduplicate identical evidence, re-identify colliding local library IDs and preserve original provenance. Plain CompareReport JSON gets specific guidance. With no model loaded, imported evidence remains usable in documents; historical IDs never select current meshes.

Aggregate execution errors fail the node and block dependent document/PDF nodes through normal dependency propagation. Previously completed records remain reviewable. Keep structured run diagnostics rather than parsing log strings in UI code. Do not automatically retry partial loads/jobs.

Exit evidence: multiple enabled/disabled jobs, multi-model IDS, A/B and A/C, no-model historical import, storage failure/retry, ID collisions and separate rerun evidence; errors block export while completed quality failures do not.

6 Shared document preparation and PDF artifacts

Extract callable preparation from DocumentPanel.tsx, useDocumentData.ts, useDocumentTables.ts, lib/document/resolve-table.ts and export snapshot seams into proposed lib/document/prepare-document.ts. Add Flow document/PDF host adapters and report.buildDocument/report.exportPdf wrappers.

Share binding, table, chart/filter, topic and snapshot preparation between UI hooks and Flow. Hooks retain subscriptions/caching; Flow awaits required list and filter work before calling generateDocumentPdf. Do not mount DocumentPanel invisibly or poll React state to generate output.

Build a default job-ordered document with native report blocks. Custom templates map compatible existing block IDs to result IDs and validate required mappings before execution. Expand a multi-model IDS job into adjacent per-model blocks, preserving presentation settings. Clone templates, create fresh document/block/ embedded-list IDs, and resolve mapped blocks to snapshots. Keep native document version 10 unless actual persisted fields require a migration; Flow-only mapping does not require a new native placeholder block.

Save through the native document library and expose Open in Documentation; storage refusal leaves the document in memory with warnings. Generate one combined PDF artifact, preserve renderer diagnostics and explicit truncation notices, and use the existing sanitized download seam. Retry download reuses the Blob. Failed/cancelled jobs and required mapping errors prevent automatic PDF.

Exit evidence: default/imported templates, mixed reports, native title/ring/layout options, multi-page row limits, unresolved mappings, charts/list preparation, warnings and download retry. Inspect rendered PDF content/layout.

7 Configuration forms and startup prompt

Extend existing Flow Player/Inspector/Palette/Panel/ValuePreview components, viewer startup surfaces and catalogues. Add small components for file slots, tag rules, enabled job lists, tag-reference mapping, template mappings, readiness, progress/results and FlowStartupPrompt.tsx.

Provide usable forms for the standard workflow; raw JSON remains an advanced option. Show resource source/type, embedded versus external mode and explicit targets. Persist configuration in the actual graph, temporary file selections outside it. Native Compare setup and Player share relevant editors/validators. Outputs navigate to native libraries/documents and explicit artifact actions. All user-facing strings are catalogued; verify labels, keyboard focus and errors.

Store one opted-in saved workflow ID with checked persistence. Prompt once after startup state is ready; Open workflow uses the saved graph, Not now dismisses this page session, Don't ask clears the preference. Suppress for explicit startup navigation and defer to existing startup dialogs. Reuse existing startup action parsing, including useModelUrlAutoload, rather than independently guessing URL keys. Deleted graphs clear the preference visibly; importing a graph never opts in. Nothing executes before Run.

Exit evidence: mounted tests prove actual control wiring, file reselection after reload, dirty/save behavior, startup priority/dismissal/deletion, persistence warnings, Cancel, native navigation and Download actions.

8 Example and complete workflow qualification

Add 09-coordination-startup.flow.json through the existing examples loader, with every barrier and exposed input. Include an evidence-only configuration requiring no live model and native setup round-trip coverage. Update Flow, IDS, model-diff, federation and documents guides, package READMEs and API samples.

Add behavioral e2e coverage under existing viewer e2e wiring: fresh startup, real files, tag preview, enabled jobs, saved history, Documentation and PDF. Use T3 preview tools for interactive browser inspection/recording when available. Store real-model acceptance evidence under docs/architecture/evidence/session-automation-6612/ with source identification, configuration, native/Flow results and inspected PDF; link it from the spec/PR.

AC20-FZK-Haus is a catalogued candidate for real-model smoke checks. A nontrivial comparison needs an actual authoring-tool revision pair with known differences: identify/fetch one from catalogue or maintainers before claiming changed-revision acceptance. Same-file comparison proves an invariant, not revision matching. Controlled overlay changes on a real model separately cover effective-store regressions. Missing fixtures skip with pnpm fixtures guidance; final acceptance cannot consist solely of skipped tests.

Exit evidence: demonstrate the full spec acceptance matrix, a new browser session and inspected PDF, with native/Flow scopes/options identical and no manually accepted identity aliases.

Verification and repository integration

Packages keep their existing Vitest convention. Viewer tests use the mounted happy-dom/node:test recipe. Assert service equivalence/lifecycle behavior rather than mocks' return values or source text. Regression cases cite #6612. Add test wiring only when a new location is not already reached by existing CI.

During slices, use root turbo commands such as pnpm test --filter=@ifc-lite/flow --filter=@ifc-lite/flow-nodes --filter=@ifc-lite/viewer and pnpm typecheck --filter=@ifc-lite/viewer, adding CLI/MCP/other changed packages as needed. If the root test-program audit needs additional generated programs, run full root typecheck rather than bypassing it. Before final delivery run root pnpm typecheck, pnpm test, pnpm lint and configured viewer e2e coverage. Inspect build failures before diagnosing source regressions.

Run applicable module-size, test-wiring, source-text, API-surface, docs sample, generated docs, README and MkDocs navigation checks. Refresh API snapshots and create changesets for published contract changes. Extending exported input unions can affect exhaustive consumers; choose the appropriate 0.x minor bump. Do not publish speculative extraction helpers. Generate ambient surfaces only if their actual schema sources change.

The inspected main ruleset requires Build + WASM + Rust + Node, Issue queue, PR review signal and the in-tree IfcOpenShell parity context. The current Test workflow also wires changed-test revert evidence, Typecheck, Lint, viewer/node tests and docs checks/strict docs build according to changed paths. Re-read workflows/ruleset before each PR; this records the inspection, not future gate authority. Every stack layer references #6612; register each PR with this thread.

List both documents in MkDocs navigation and link them together. The delivered runtime includes regression tests, a changeset and an updated API snapshot. No Rust/geometry-package edits were needed. If loader work expands into a perf-sensitive path, follow base-versus-branch worker measurement requirements and record the verdict in the ledger. Automation alone is not a speedup claim.

Evidence dependency and completion

Begin with shared native execution. The external acceptance dependency is a real changed revision pair; it does not block contract/lifecycle/UI work or controlled-overlay tests. Trace loader cancellation ownership, startup priority and conflicting execution entry points in their implementation slices before editing. This plan identifies seams without claiming their modifications have already been verified. Enforce the spec limits; reconsider only with measured resource evidence if real deliveries cannot fit them.

The final PR records actual source models/configuration, native-versus-Flow results, startup/session recording, PDF inspection, cancellation/storage outcomes and check results. Partial node registration, passing mocks or a PDF Blob alone do not close #6612: every requested stage must work through the saved startup workflow.

Delivery evidence — 2026-10-01

The standard registry includes all seven session/report nodes. The viewer owns their native services, file handles, scoped models and PDF artifacts. CLI/MCP describe the portable graph and reject unsupported session services before model loading. The shipped example is Coordination session report.

The production viewer was exercised through the collaborative browser with the real Archicad fixture tests/models/ara3d/AC20-FZK-Haus.ifc (2,526,544 bytes; SHA-256 ea6f04eaf92fac4d7ad0038bc3d2dfea4c094dd3f516ecc33c50bf1835ca108d). Two copies, named AC20-FZK-Haus-ARC-A.ifc and AC20-FZK-Haus-ARC-B.ifc, were selected in Player. A native Rules file checked IfcWallStandardCase.Pset_WallCommon.FireRating against F90; a separate data-scope comparison recipe selected those filenames.

All seven stages completed. The saved validation report checked 26 walls and retained 26 quality failures; the saved comparison had zero changes. The native PDF displayed both results, source hashes, edit revisions, workflow/run IDs and report timestamps. Its rendered page was visually inspected. Repeating Run kept the same two model IDs and generated fresh immutable evidence. A separate single-model run checked 13 walls. This smoke test uses identical sources; changed geometry and edited properties are covered by native regression tests, not claimed as a real authoring-tool revision-pair acceptance run.

Opting into startup and reloading displayed the saved-workflow prompt with zero loaded models. Opening it selected Player, left every File input empty, and did not execute. A separate three-node historical-import/document/PDF workflow completed with zero models loaded and preserved the archived comparison's original generation timestamp.

Verification uses root Turbo commands: pnpm build --env-mode=loose, pnpm typecheck, pnpm lint, the Flow/Flow-nodes/CLI/MCP package tests, and all eight viewer shards via TEST_SHARDS=8 TEST_SHARD=N pnpm test --env-mode=loose --filter=@ifc-lite/viewer. Documentation samples/generated regions/navigation and a strict MkDocs build (uv run --with-requirements requirements-docs.txt mkdocs build --strict), API surface, changesets, MPL headers, module sizes and applicable viewer guard scripts were checked. pnpm knip reports repo-wide unused entries and is not a passing gate; unused exports introduced by this implementation were removed. No Rust algorithms changed, and no performance improvement is claimed.

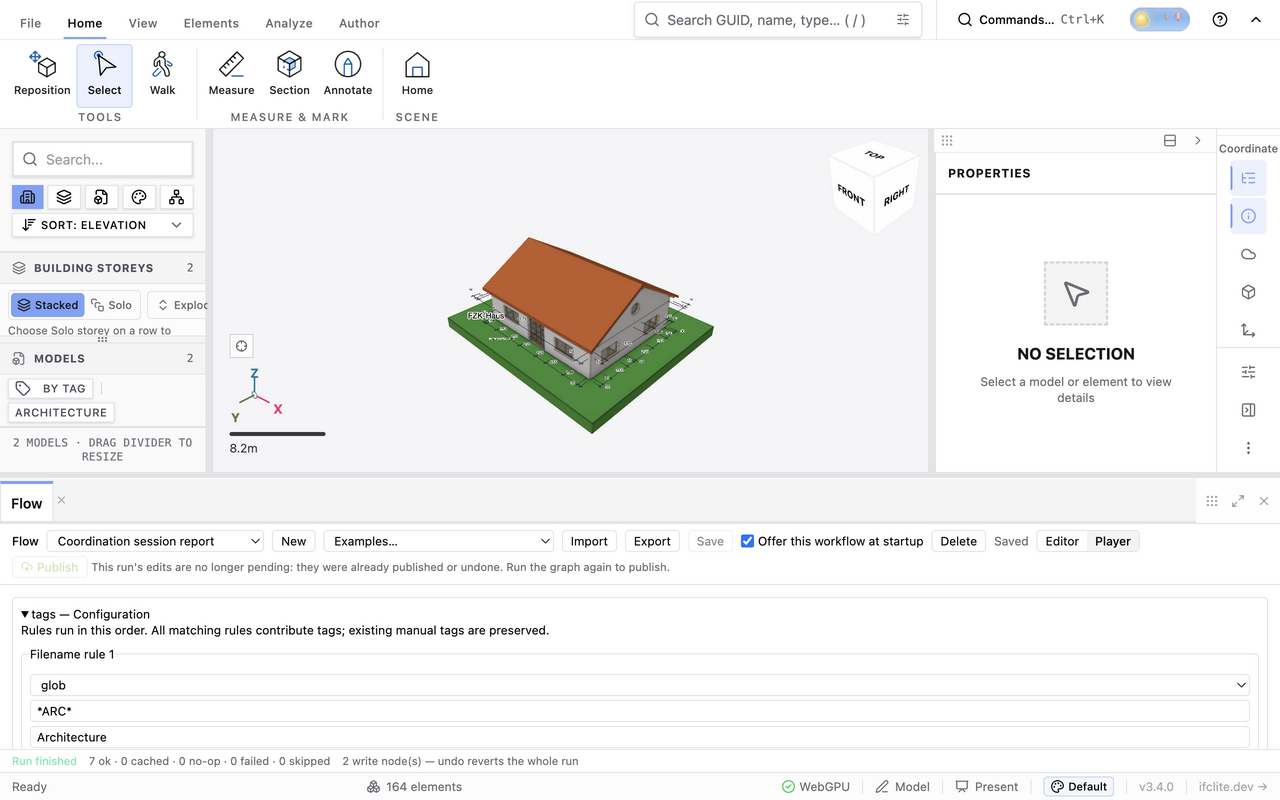

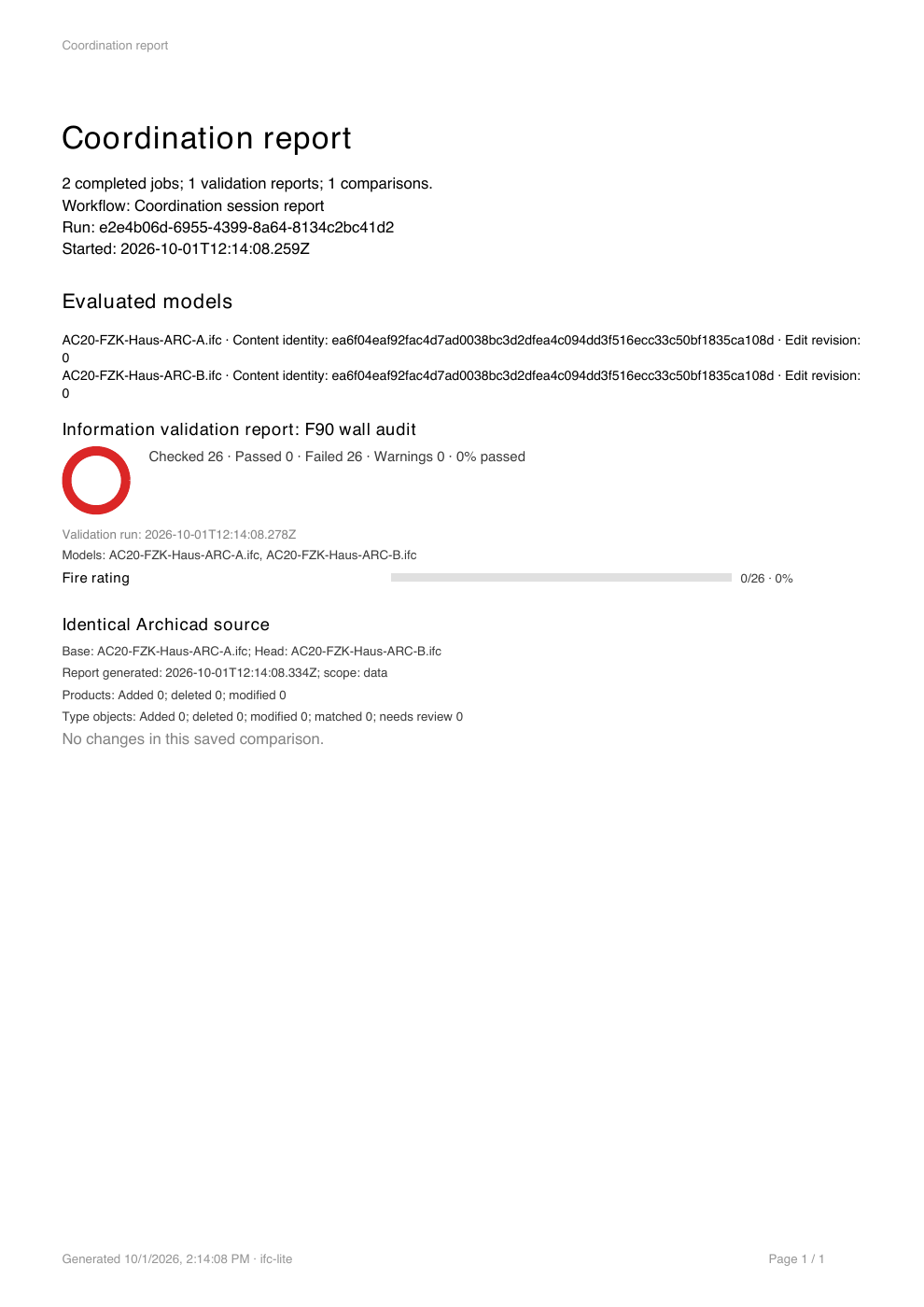

Captured evidence from that production run is available in the native PDF. The images below show the completed seven-stage workflow and its rendered report page.
