Real vector floor-plan acceptance (#4406)

This directory proves that the PDF-vector pipeline converts a real, permissively licensed architectural drawing into native IFC geometry. The source is Typical House Floor Plan, drawn by MrDrew508 and vectorized by Malyszkz. Wikimedia Commons identifies it as GPL-2.0-or-later. The source, PDF derivative, IFC derivative and rendered derivatives in this directory remain under that license; COPYING contains its terms.

The pinned original is HouseFlrPlan.svg, fetched from the Commons original-file URL:

  • 7,768 bytes
  • SHA-256 7133dbc8effd298365c6882e8244cce9a6366109bf31c4b32f4f5023215113d9
  • Inkscape-authored vector paths representing exterior and interior walls, openings and a stair

HouseFlrPlan.pdf is a deterministic PDF derivative made with CairoSVG 2.8.2, cairocffi 1.7.1, cairo 1.18.4 and pypdf 6.10.1. CairoSVG creates a vector PDF; pypdf removes volatile metadata and regenerates stable file identifiers. Repeating both steps on the recorded toolchain produced the same 1,541-byte PDF and SHA-256 de2e10df02059bc14a0eae6c1922cd2a699c1938a4c74c97978fccf1ef5df550.

cairosvg HouseFlrPlan.svg -o HouseFlrPlan.raw.pdf
python - <<'PY'
from pypdf import PdfReader, PdfWriter
r = PdfReader("HouseFlrPlan.raw.pdf")
w = PdfWriter()
w.clone_document_from_reader(r)
w.metadata = None
w.generate_file_identifiers()
w.write("HouseFlrPlan.pdf")
PY

Conversion result

report.json is a fresh production PDF.js 6.3.289 and WASM run over the complete page. It contains one compound painted path (17 moves, 110 lines, 8 curves and 16 closes in the decoded path), reports one convertible path, zero omissions, exact: true, and rasterOnly: false. The declared model-space curve tolerance is 2 mm. A 1 mm request correctly exceeds the unchanged four-million-unit shared geometry work budget; 2 mm is the smallest tested accepted setting and visibly preserves the drawing's walls, openings and stair.

HouseFlrPlan.ifc is the exported IFC4 result. Its one IfcAnnotation has three fill regions and records the source digest, complete CropBox, effective conversion boundary, calibration, 2 mm tolerance, request digest and exact fidelity verdict in IfcLite_PdfVectorConversion. HouseFlrPlan-plan.json records the native plan used only by the independent comparison oracle.

Independent comparison

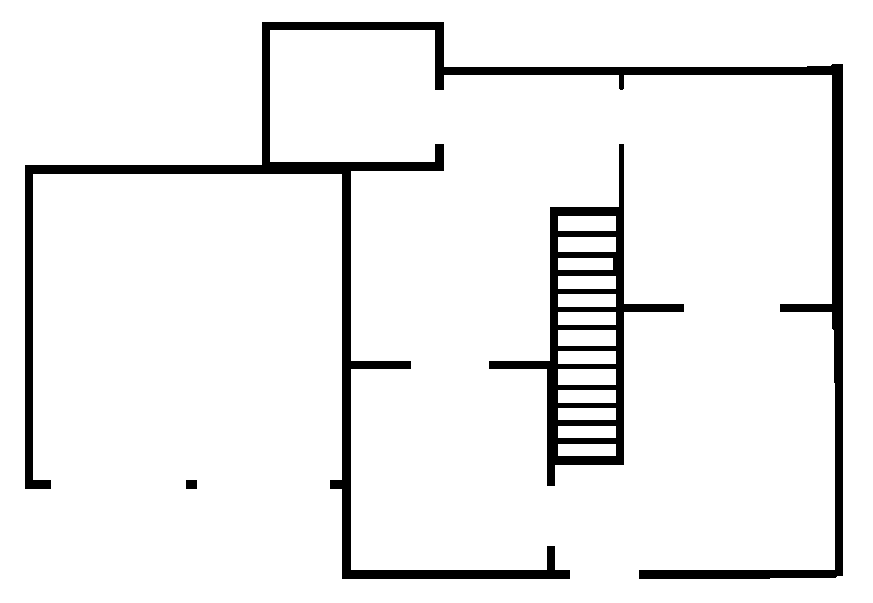

oracle.json records an independent reopen with IfcOpenShell 0.8.2 and raster comparison with MuPDF 1.26.5. IfcOpenShell found the IFC4 annotation, its three representation items and all three fill regions. Native 3D meshes and independently reopened 2D IfcAnnotationFillArea boundaries produce identical 873 × 603 predictions (zero differing pixels).

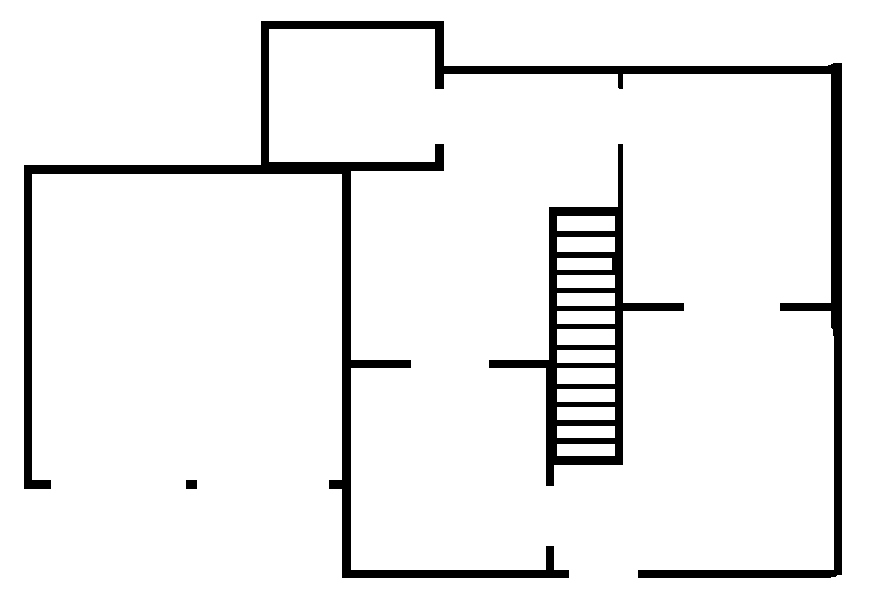

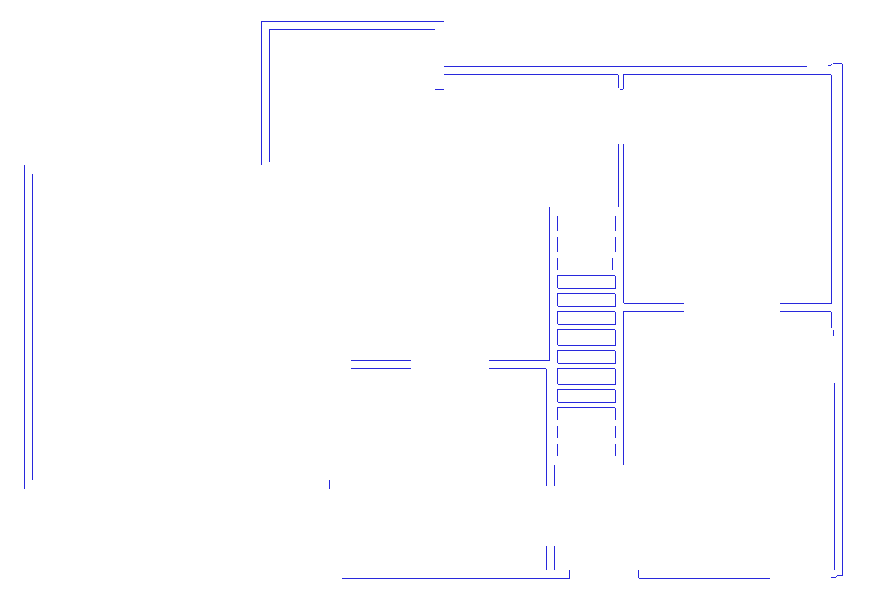

Against the source PDF raster, both predictions differ at 5,777 of 526,419 pixel centres. Every difference is on a native boundary, the maximum distance is 0.549 pixel, and zero pixels are unexplained. The images make the claim directly assessable:

Reproduce the acceptance run

After pnpm build:wasm, from the repository root:

export TSX_TSCONFIG_PATH=apps/viewer/tsconfig.json
export PDF_FIDELITY_TOLERANCE_METRES=0.002
E=docs/architecture/evidence/pdf-real-vector-plan
node --import tsx --import ./apps/viewer/src/test/vite-module-hooks.mjs \
  tools/texture-authoring/pdf-fidelity-evidence.mjs \
  "$E/HouseFlrPlan.pdf" 1 "$E/report.json" "$E/HouseFlrPlan.ifc"
python tools/texture-authoring/pdf-fidelity-oracle.py \
  "$E/HouseFlrPlan.ifc" "$E/oracle.json" "$E/HouseFlrPlan-plan.json" \
  "$E/HouseFlrPlan.pdf"
