Registered PDF vectors in the viewer

This acceptance covers the explicit PDF vectors choice within a registered drawing's Save into model controls. It does not qualify arbitrary PDF pages. The source is the original CC0 controlledPdf() in the viewer test fixtures: SHA-256 67fe4a0c1e9a826c84643a67f535bc2efca92505386dc619fb5c90364dd49e54. It includes nonzero CropBox coordinates, 90-degree intrinsic rotation, UserUnit 2, and two differently coloured regions touching the intrinsic page boundary.

The target reuses the F5 captured model, whose public boulder source and derivation are credited in the linked evidence. The browser opens the existing authored-owner IFCZIP through Open, uploads and calibrates the PDF as a vertical reference, then removes its catalog source. The saved registration still owns the original document. Save into model → PDF vectors → Prepare vector preview decodes that original page and prepares both canonical coloured parts without IFC or main-scene publication. Explicit Create selects one IfcAnnotation with both parts and no texture assets.

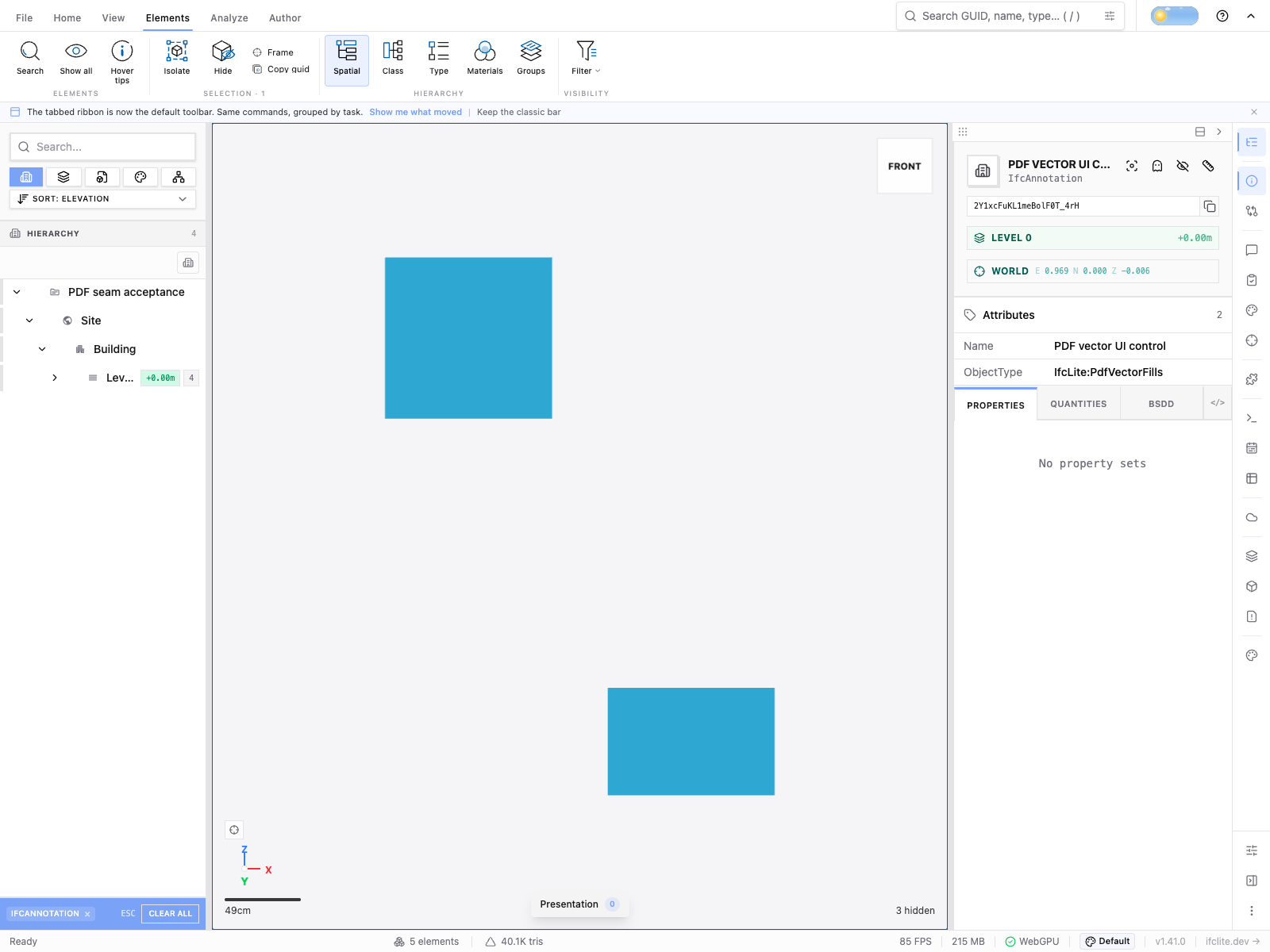

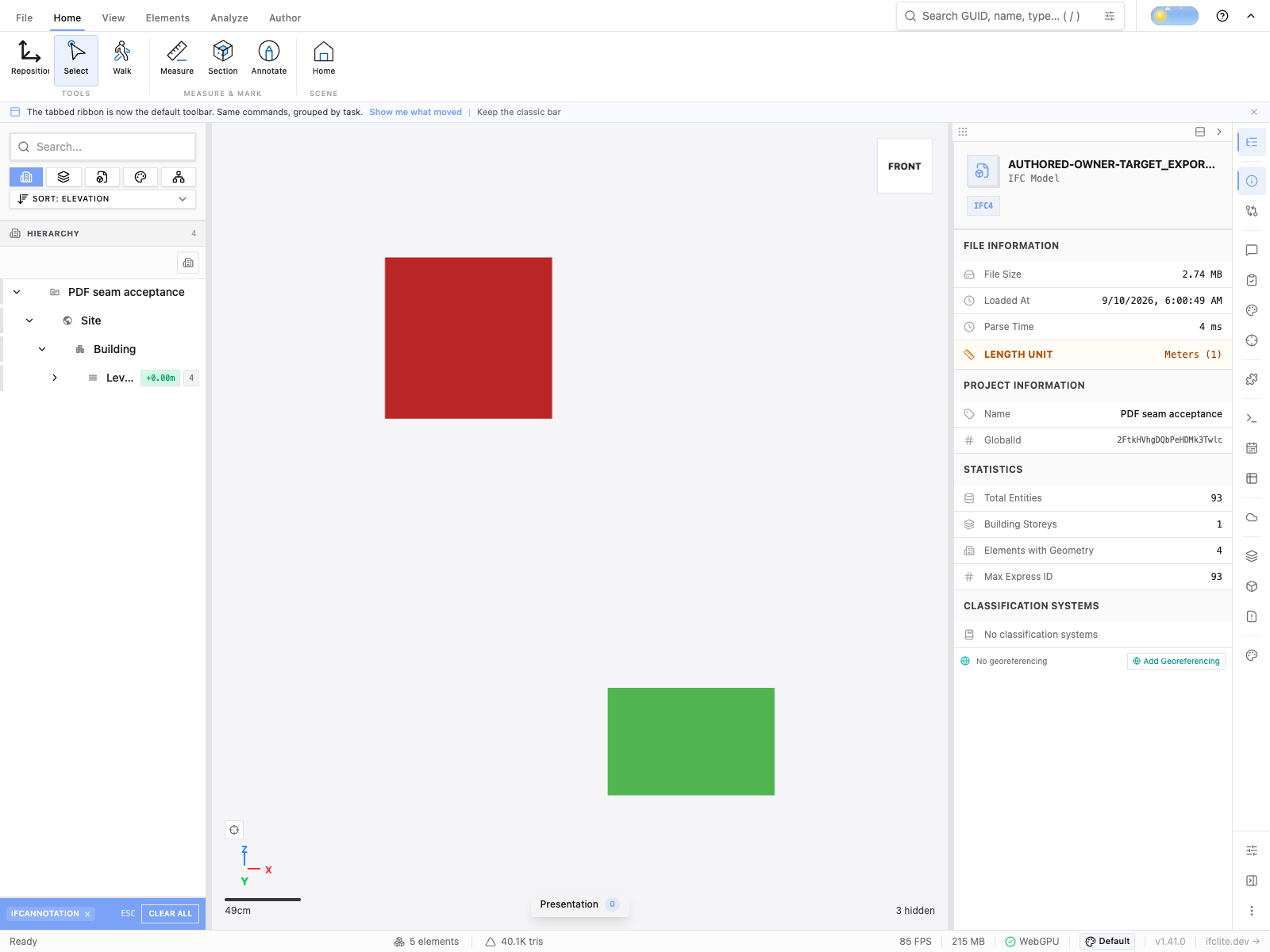

Ordinary toolbar Undo removes the owner; Redo restores both parts. The drawing reference is hidden independently. File → IFC export writes an IFCZIP, and a fresh tab opens it through the ordinary loader with no original PDF uploaded. The reopened annotation retains Name, both colours, four triangles and exact indexed world-corner association in this control. Actual pointer picking selects it before and after export. This is a controlled visual-geometry workflow, not a claim about text, font, arbitrary clipping, transparency or stroke fidelity.

Native qualification and the independent original-PDF/IFC oracle are recorded separately in PDF composition lattice. The shared authored-owner transaction is covered in authored-owner evidence. Unsupported pages and user-cropped references are refused without partially created IFC geometry.

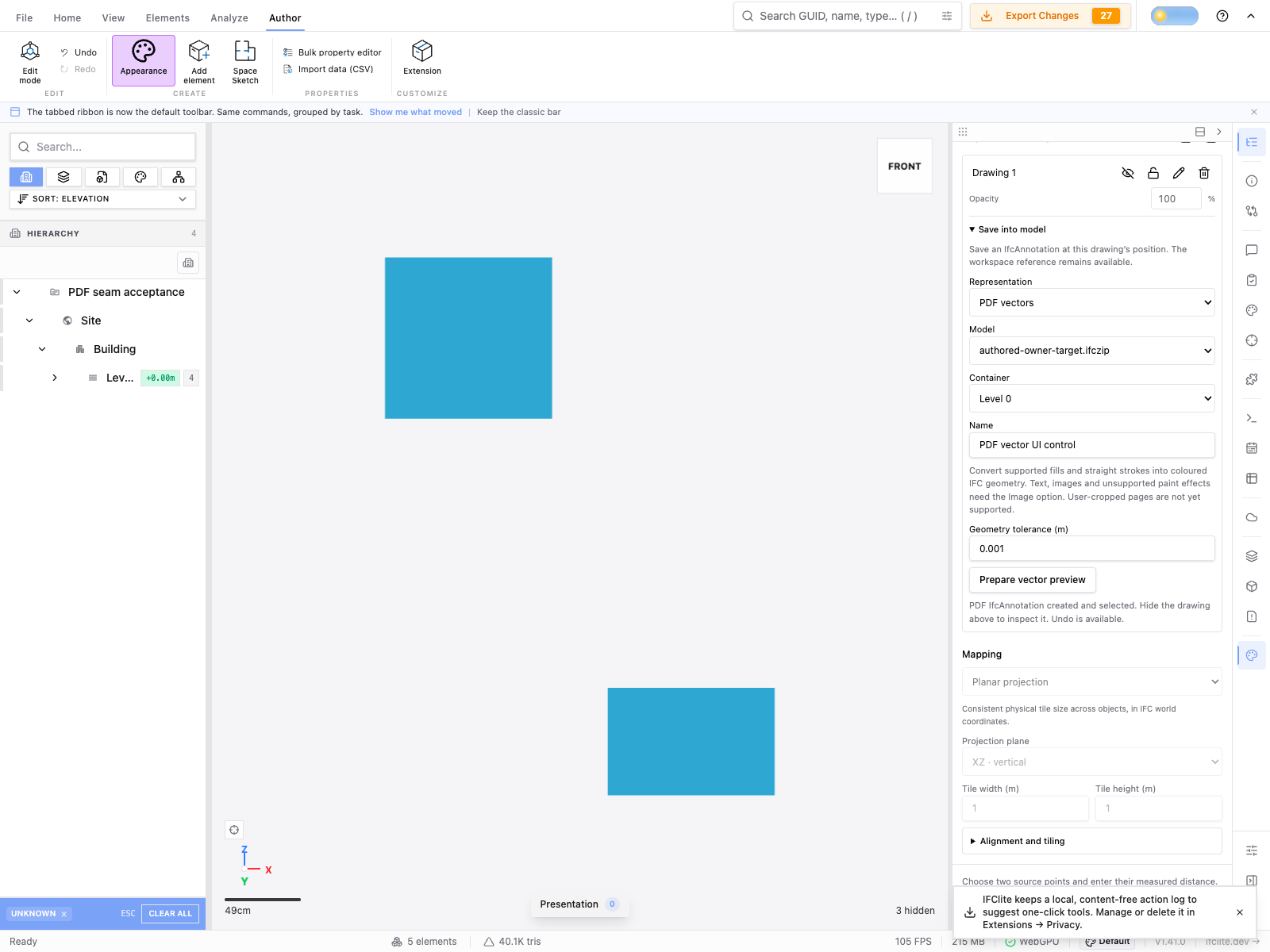

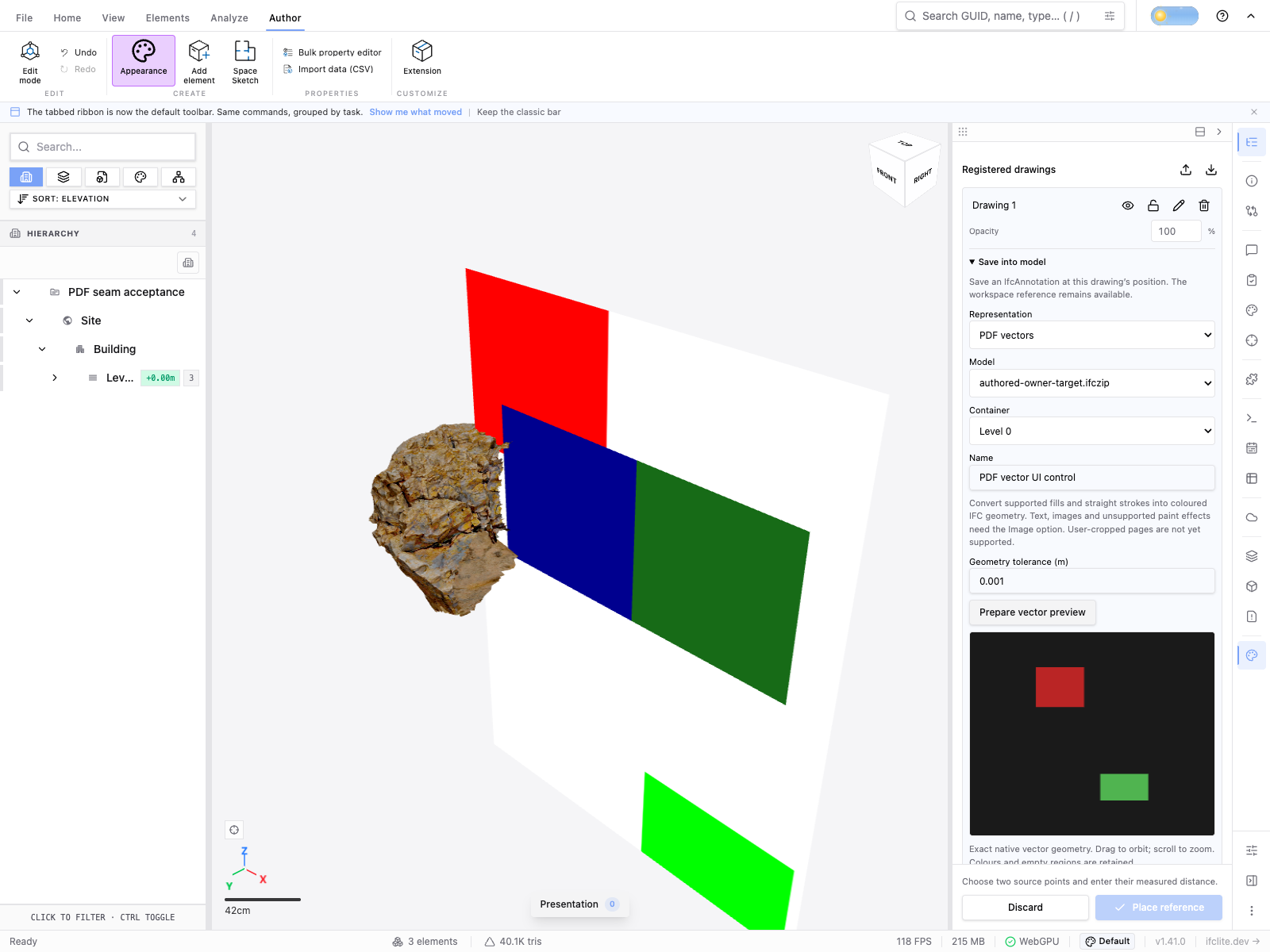

Native preview shows the explicit representation and tolerance controls after removing the catalog source. Created and selected shows the owner restored by ordinary Redo. Journey measurements retain the frozen reference recipe, exact indexed world coordinates and colours, actual pointer locations, browser version and export/reimport results. The measured maximum world-corner difference is zero for this control.

The UI validation passes Node 22.23.2 root Turbo typecheck across all 1,926 test files. Focused tests cover original-PDF/IFC binding and no-publication preview, late cancellation/input changes/model removal, shared target selection, existing image creation controls and shared textured/untextured GPU preview. The final combined browser run includes the separately reviewed item-level 3D routing fix. Unselected fresh import displays exactly the two intended coloured regions. Pointer selection selects the imported IfcAnnotation. The actual GPU symbolic fill pipeline is empty while the 2D cache retains both fills: owner 92, items 77 and 86, matching the two native mesh parts. The harness binds the cache getter once and waits with a synchronous predicate before inspecting either pipeline.

The combined root build passes all 51 tasks. Its freshly generated WASM digest, source checkpoint, output IFCZIP digest and browser/runtime identity are recorded in journey.json. This control establishes the integrated workflow; the broader PDF fidelity work remains tracked by #4406.

To repeat the full UI journey, run browser-proof.mjs from the repository root with PROOF_TARGET_IFCZIP pointing at the same F5 target and PROOF_PDF at the original controlledPdf() bytes. PROOF_URL selects the local development viewer (default port 4390); PROOF_OUT selects an untracked output directory. The harness uses real UI actions for calibration, preview, creation, history and export, canonical store/camera helpers for framing, and actual pointer input for selection. It closes its browser in finally. No viewer geometry is fabricated.

The manual browser harness is registered as a Knip entry point. Knip remains non-green on repository-wide unused/unresolved reports; none of this change's production modules or the renamed helpers is listed. No unrelated cleanup sweep is included.
